Fiber Optic Installation in Los Angeles

We install multimode and single-mode fiber for UniFi networks, with Cleerline SSF as our main cable.

Plan fiber Call

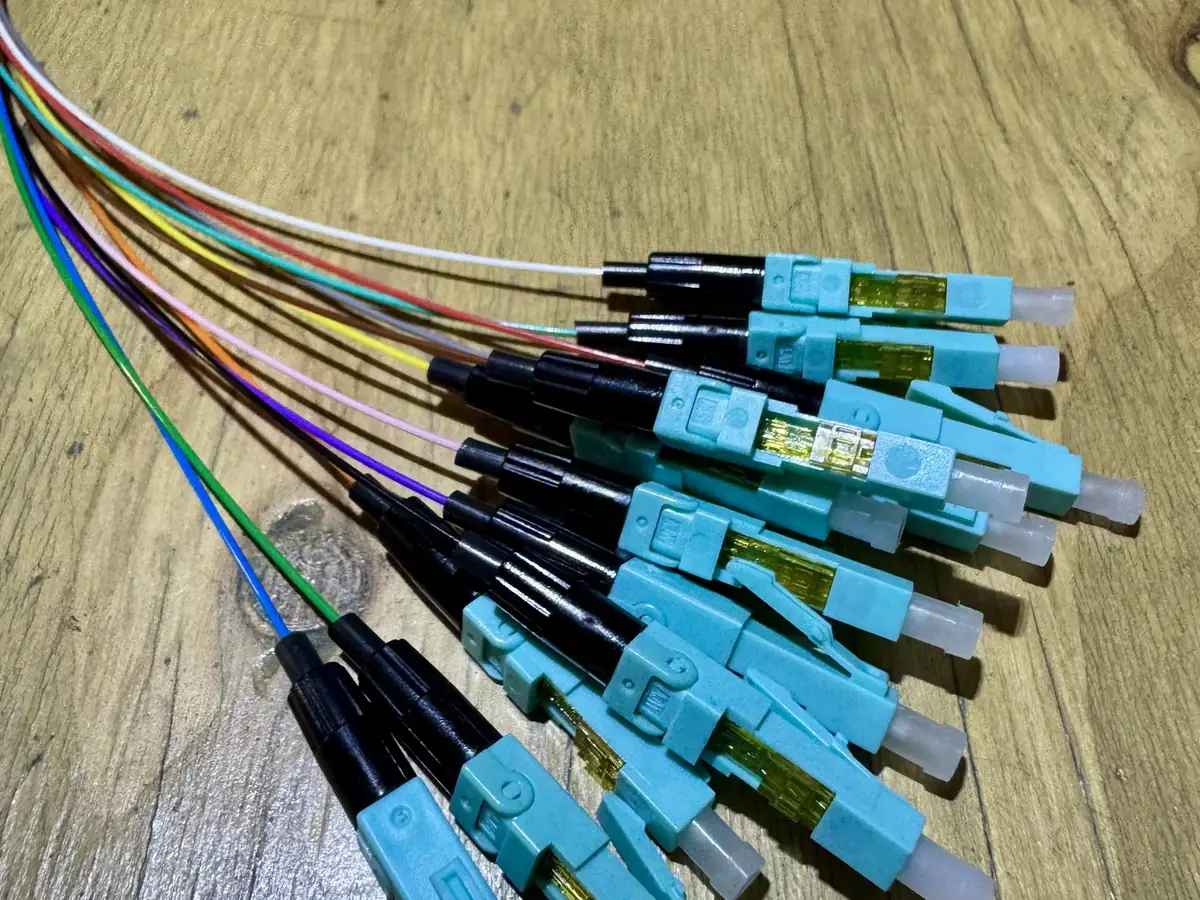

Fiber patch cables with LC connectors
What we do

Gbit Tech installs Cleerline SSF™ (Stronger, Safer Fiber).

We use it for production studios, warehouses and other sites that need fast links with minimal signal loss.

Fiber carries 10G+ links between racks, buildings and long runs, with copper for the last stretch to each device: CAT6A for data drops and Wi-Fi access points, CAT6 for cameras.

01 / WHAT WE INSTALL

What we install

What we install, and why.

01

Why Cleerline SSF?

We chose Cleerline SSF as our primary fiber. Traditional fiber can be fragile. Cleerline describes SSF as patented polymer-encapsulated glass that is more durable, can bend around corners without snapping, and leaves no sharp shards if damaged. Cleerline reports it terminates about 30% faster. We pair it with UniFi systems for end-to-end integration with your WiFi, security cameras and access control.

02

Multimode vs. single mode

Multimode fiber (MMF) is for shorter distances. OM3 (aqua jacket, up to 10G over 300m), OM4 (40G up to 150m, 100G up to 100m), and OM5 (wideband for even faster multi-wavelength transmission).

Single mode fiber (SMF) is for long distances. OS1 is the indoor tight-buffer grade and OS2 is the outdoor-rated, lower-loss grade. Standard 10G optics reach 10km, and long-reach optics go 40km or more.

03

Cleerline SSF cable variations

  • Duplex: classic zipcord for straightforward point-to-point connections.
  • Micro distribution: multiple strands (2-24+) in a slim jacket for dense backbones.
  • Breakout (tactical): rugged subunits for tough environments.
  • Rugged indoor-outdoor and armored: enhanced jacketing for outdoor conduits and harsh conditions.
04

Our installation process

A site walk, design, installation, testing, and integration with your existing setup, all under our C-7 low-voltage license.

Fiber link between two buildings, from the SFP+ port of a UniFi Pro Max 24 PoE in the main house to the SFP+ port of a UniFi Pro Max 16 PoE in the second building. Fiber carries no PoE, so the far switch runs on local power and powers the camera and access point there.
On the job

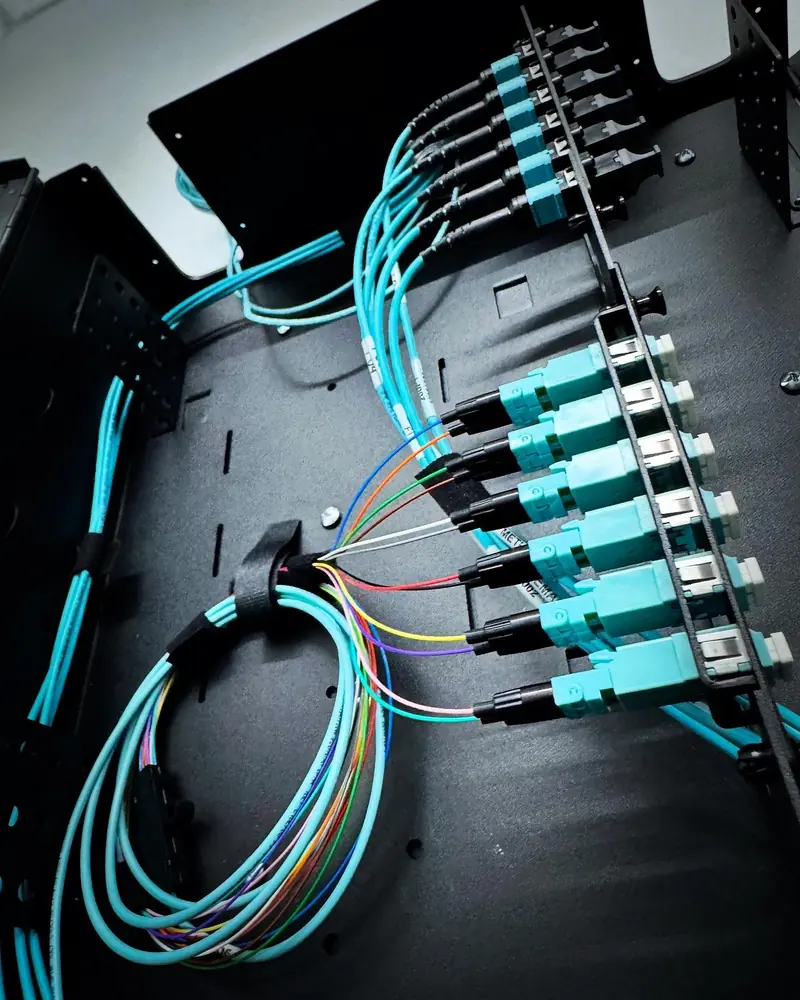

Fiber patch panel with patch cables
Open fiber enclosure with coiled fiber

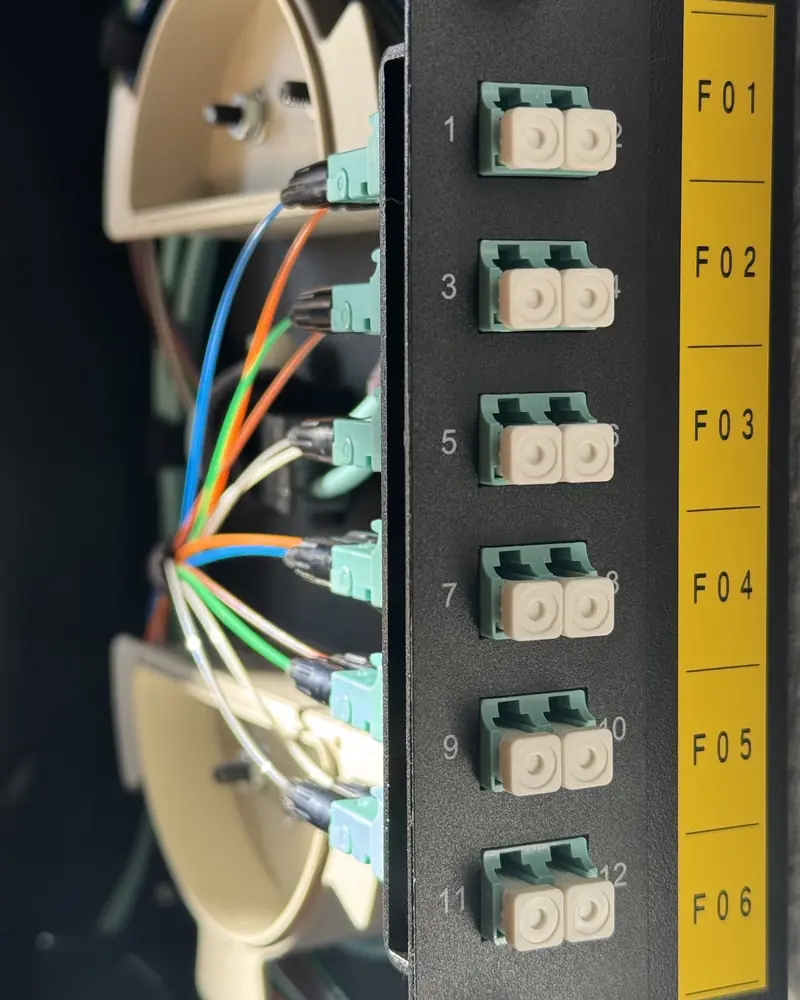

Fiber patch panel with labeled LC duplex adapters F01 to F06

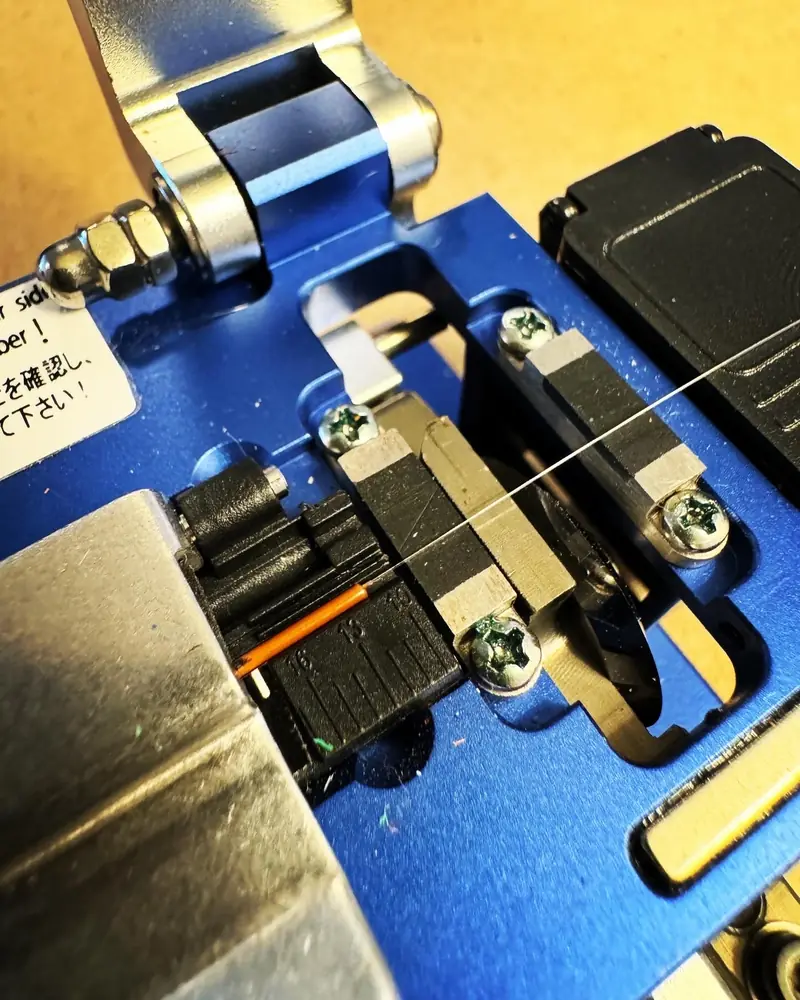

Fusion splicer holding a bare fiber during a splice
02 / HOW WE WORK

How we work

From walkthrough to a live on-prem system.

  1. 01WALK

    We map the site and confirm the brief.

    On site, not from a photo

  2. 02DESIGN

    We plan coverage, pathways, and hardware.

    Coverage planned before install

  3. 03INSTALL

    We pull cable and label every run.

    Every run labeled

  4. 04HAND OFF

    We walk you through the finished install.

    Walkthrough of your system
Request a walkthrough
Good fit
Studios

Production studios.

Warehouses

Warehouses that need a fiber backbone.

UniFi systems

Paired with UniFi for WiFi, security cameras, and access control.

FAQ
What fiber do you install?

Cleerline SSF™ is our primary fiber, in multimode and single-mode.

Do you test the links?

Yes. Our process covers a site walk, design, installation, testing, and integration with your existing setup.

Are you licensed?

Yes. C-7 low-voltage license #1050088.
